Brand Name : balluff
Model Number : BTL7-S572-M1800-P-S32
Certification : ce
Place of Origin : Germany
MOQ : 1pcs
Price : Negotiable
Payment Terms : T/T
Supply Ability : 1150PCS
Delivery Time : 8weeks
Packaging Details : carton 45*12*15
linear range : 25-4000mm
Displacement ranges : 300
resolution (of a photo) : 10Nm
Output type : digital signal-SPI
weight : 2kg
IP rating : IP67
Interface | SSI |
Measuring length | 50...7620 mm |
Repeat accuracy | ≤ ± 5 µm |
Linearity deviation | |
nnnn = 50…5500: ± 30µm | d = 1, 2, 3, 7, 9: |
nnnn = 50…5500: ± 2 LSB | d = 4, 5, 6, 8 |
Operating voltage Ub | 10...30 VDC |
Ambient temperature | -40...85 °C |
-40...85 °C | |
Mechanical configuration | Block-style profile - 37 x 35 mm |
Housing material | Aluminum, Anodized |
IP rating | l = S: IP67 with connector |
l = S: IP67 with connector | l = KA: IP68 |
Approval/Conformity | CE,UK,CA |
![]() |

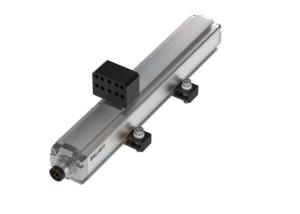

MP727991 BTL7-S572-M1800-P-S32 Magnetostrictive Linear Position Sensors 2kg Weight Images |
